1W COFDM Power Amplifier

This amplifier is a 1W Sub-1GHz linear power amplifier, designed for COFDM transmitter applications. The amplifier offers a compact and rugged design.

Features:

• Gain: 45dB

• Maximum RF input power: -8 dBm

• Pout: +30dBm(PAR=9.9dB)

• ACPR: < -36dBc

• IP3: +49dBm

• Noise Figure: <6dB

• Impedance: 50ohm

• DC Supply Voltage: 11~13VDC

• Power consumption: <10W

• SMA female Connector

• Dimensions: 43.5x26.5x12mm

• Weight: 29.4g

• Frequency Range (Specify):
  300~360MHz, 450~500MHz, 520~560MHz, 580~620MHz, 680~720MHz, 820~860MHz
  (Other Ranges please contact Sihid)

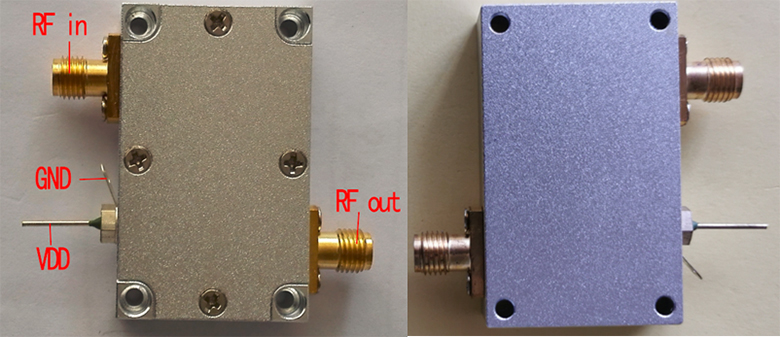

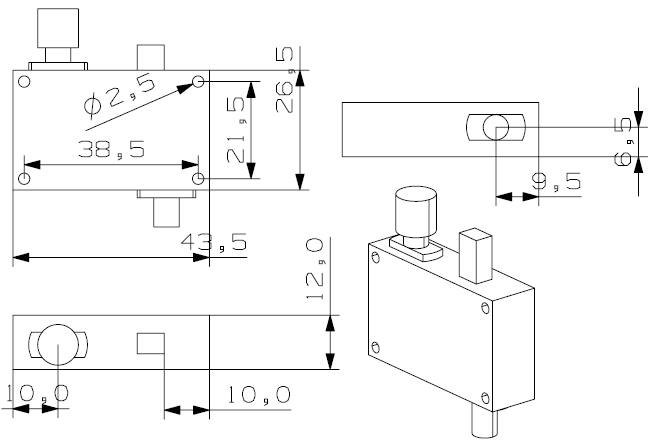

Outline(mm)

1W COFDM PA overview.pdf
