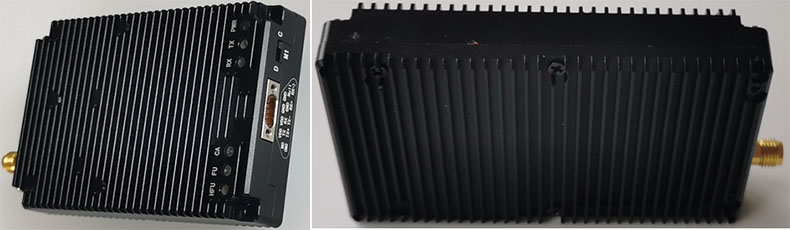

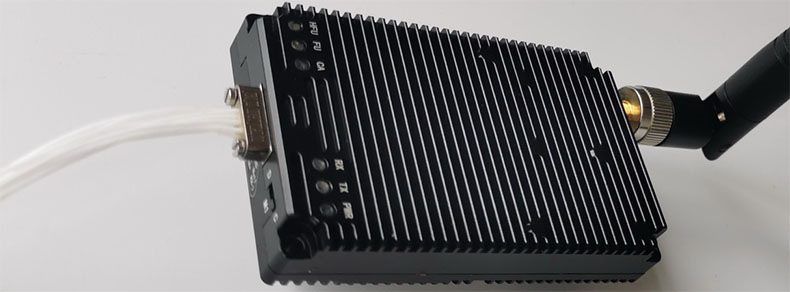

SND1 20W Data Link Mesh Radio

    -- Supports up to 735kbps wireless link rate
    -- Supports Point-to-Point, Point-to-Multipoint, Multipoint-to-Point and Mesh topologies
    -- Supports maximum 1024 nodes mesh network
    -- High sensitivity: -114dBm@125kHz
    -- Supports frequency hopping(FHSS)
    -- Air-to-ground LOS(light of sight) distance: more than 300km

SND1 self-organizing network(Mesh) data link radio realizes the centerless long-distance communication between large-scale nodes, all nodes can communicate with each other independently without interfering, supports large-scale dense node access to wireless transmission, dynamic networking and flexible reorganization, supports full-multiplexing communication, the node sends data at the same time it can also receive the data of all other nodes without interfering with each other, and in the absence of the center, it can realize the interoperability of any node and all other nodes in the network. Without interfering with each other, it can realize the interconnection between any node in the network and all other nodes in the case of no center.

SND1 data link mesh radio supports large-scale node access, multi-hop self-organizing network, 500mW transmit power, -114dBm sensitivity, maximum 735kbps effective data transmission rate, 2ms ultra-low latency, which can be used for swarming drones, Internet of Things, data chain, remote control, data collection, artificial intelligence, military equipment and other application scenarios.

SND1 data link mesh radio has a variety of models to choose, the appearance and functional characteristics of each model is the same, only the working frequency band and networking scale is different.

SND1 20W data link mesh radio models

Model	Network scale	Frequency bands
SND1-H800-20W	Max. 1024 nodes, up to 16 hops	820~854MHz
SND1-H900-20W		900~940MHz
SND1-F800-20W	Max. 256 nodes, up to 3 hops	820~854MHz
SND1-F900-20W		900~940MHz

Features:

• Frequency: different models support different frequency bands, see models table
• Bandwidth: 1MHz/500kHz/250kHz/125kHz selectable
• Number of nodes and hops: Maximum 1024 nodes up to 16 hops or 256 nodes up to 3 hops, see models table
• Frequency hopping speed: More than 1800 times per second@1MHz, More than 900 times per second@500kHz, More than 450 times per second@250kHz, More than 225 times per second@125kHz
• Effective data rate: Maximum 735kbps@1MHz, 370kbps@500kHz, 185kbps@250kHz, 92kbps@125kHz
• Full-multiplexing communication: support
• Air-to-ground LOS(light of sight) distance: more than 300km
• Centerless self-organized network: support centerless self-organized network, any node of the network is destroyed without affecting the communication
• Network construction time: within 1 second
• Wireless transmission delay: minimum 2ms
• Dynamic topology: support dynamic topology, support node joining and leaving, network topology change and deformation can be normal communication
• RF power: 20W(43dBm)
• Sensitivity: -114dBm@125kHz, -111dBm@250kHz, -108dBm@500kHz, -105dBm@1MHz
• Frequency stability: ≤1ppm
• QPSK modulation LDPC coding
• Encryption: 128-bit encryption
• Low power consumption: less than 1.5W(0.06A/24V) when receiving, transmission power consumption (B is in bytes):

  When transmitting data at 1.2KB/s, the power consumption is around 2.4W(0.1A/24V)；
  When transmitting data at 3.4KB/s, the power consumption is around 3.9W(0.16A/24V);
  When transmitting data at 6.4KB/s, the power consumption is around 5.5W(0.23A/24V);
  When transmitting data at 12KB/s, the power consumption is around 9.6W(0.4A/24V);
  When transmitting data at 26KB/s, the power consumption is around 19.2W(0.8A/24V);
  When transmitting data at 37KB/s, the power consumption is around 24W(1A/24V);
  When transmitting data at 48KB/s, the power consumption is around 32W(1.35A/24V).

• Operating voltage: 24V as default, supports a wide voltage input of 7-36V. The 7V power supply has a transmission power of 2W, the 12V power supply has a transmission power of 5W, the 18V power supply has a transmission power of 10W, the 24V power supply has a transmission power slightly greater than 20W, and the 20-36V power supply has a transmission power of 20W-30W. The power supply capacity requirement is above 2.5A @ 24V (20W).
• Operating temperature: -40～+55°C
• Dimensions: 82.5*52*16mm
• Weight: 90.7g

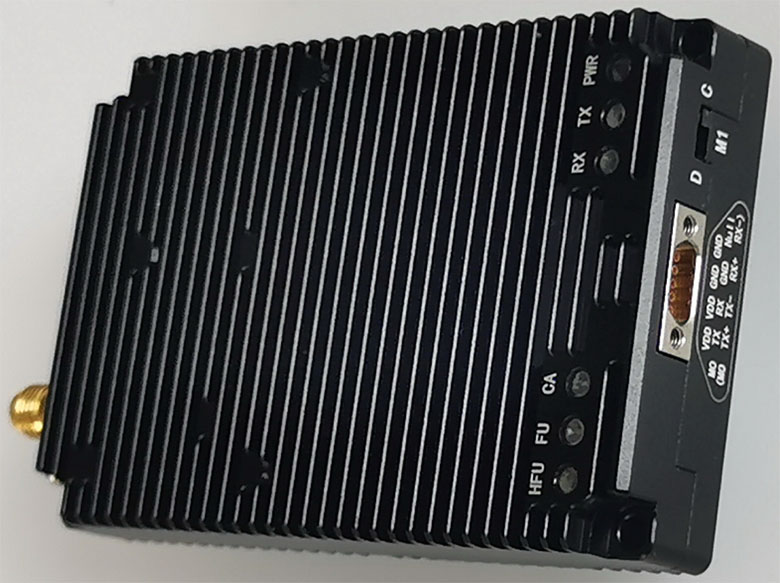

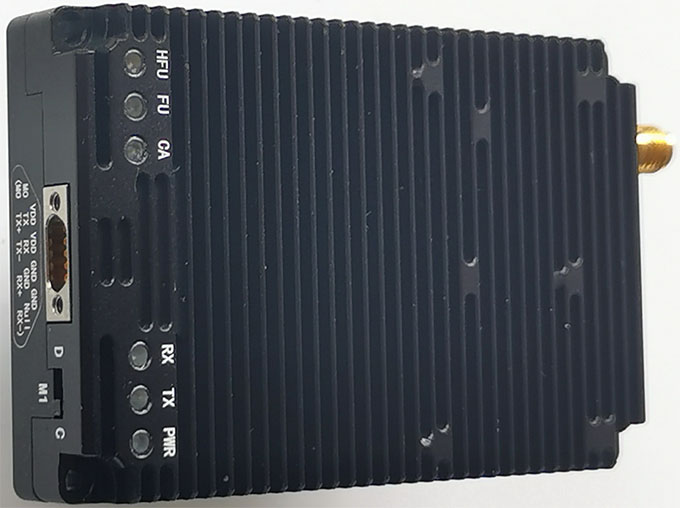

I/O

I/O	Description

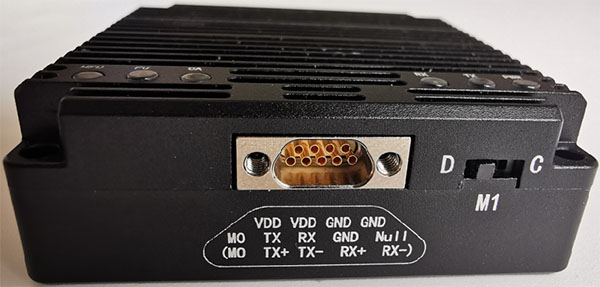

J30JZ-9PIN connector	Power-input, uart, M0 control signals
M1 Dipswitch	M1 control signal
SMA female	Antenna port, the required antenna impedance is 50Ω
PWR LED	Power led, Red light on normal powered.
TX LED	Green, data transmission led, briefly light during power on self-test, light when data is transmitting.
RX LED	Green, data receiving led, briefly light during power on self-test, light when receiving data.
CA LED	Blue, interference led, briefly light during power on self-test, light in configuration mode. In transparent transmission mode: When it light on, it means exist interference and the brighter the light, the stronger the interference signal.
FU LED	Blue，data cache indicator led, briefly light during power on self-test, light when data cache is full.
HFU LED	Blue，data cache indicator led, briefly light during power on self-test, light when data cache is half full.

Uart port

Before shipment, the uart port can be assembled as TTL uart port, or RS232 uart port, or RS422 uart port according to customer’s requirement. The TTL/RS232 uart port data bit is 8-bit, the stop bit is 1-bit, and there is no parity check bit. When the radio operates in configuration mode, the baud rate is fixed at 9600. When operating in data transparent mode, the baud rate can be configured as 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800 / 921600. Suggest selecting a baud rate of 921600 when the RF bandwidth is 1MHz; When the RF bandwidth is 500kHz, select a baud rate of 460800; When the RF bandwidth is 250kHz, select a baud rate of 230400; When the RF bandwidth is 125kHz, select 115200 baud rate, so that the uart port baud rate matches the wireless throughput to avoid packet loss during uart port data transmission and reception. uart ports are mainly used for radio parameter configuration and data transmission.

M1 Dipswitch

M1 and M0 (M0 PIN of J30JZ-9PIN connector) signal is used for control the radio operating mode.

The radio supports two operating mode: data transparent transmission mode and configuration mode. Users can configure the M0 level and the M1 status to put the system in the corresponding mode. When the voltage levels of M0 and M1 are not consistent, the system operates in configuration mode; When the voltage levels of M0 and M1 are the same, the system operates in transparent mode. The M0 and M1 pin systems have been pulled up to a high level internally and are in transparent mode. When M0 is suspended, the M1 dip switch is turned to the “C” side, and the system enters configuration mode. The M1 dip switch is turned to the “D” side, and the system enters transparent transmission mode. The configuration mode and transparent transmission mode are switched in real-time without restarting the system.

When the radio is in configuration mode, it only responds to configuration commands and does not transmit received serial data to the wireless port. It also does not output data to the serial port when receiving signals from the wireless port. In configuration mode, the uart port baud rate is fixed at 9600, with 8 data bits, 1 stop bit, and no parity check bits.

When the radio is in transparent transmission mode, if the received serial data is a configuration packet, the radio will perform parameter configuration; If the received serial data is not a configuration packet, it will be transmitted to the wireless port, and the signal received from the wireless port will be forward to the serial port.

In configuration mode, only local configuration parameters are supported, while in transparent transmission mode, both local and remote parameter configurations are supported.
