SUE5 Video Encoder Module

-- Low latency H.265/H.264 video encoder module, full HD resolution, maximum 1080P60 encoding
-- Audio codec with audio input and output
-- Mini HDMI/AV video input, Ethernet RTSP/TS stream output, TCP/UDP protocol
-- Web UI or uart for management
-- Optional: HDMI+AV input and encoding at the same time
-- Optional: 4K video input and 4K encoder, maximum resolution 3840*2160@30fps
-- When paired with Sihid SHD5 decoder module, the H.265 video latency is about 200ms to 250ms
-- When paired with Sihid SHD4 decoder module and in the lowest H.264 mode, the video latency is about 50ms to 130ms

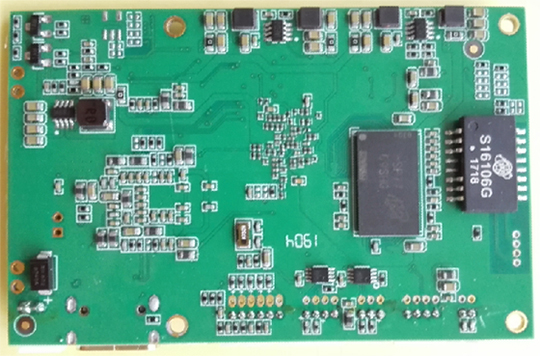

SUE5 video encoder module implements H.265/H.264 video encoding and audio codec, the stream will output via Ethernet after encoding. One channel uart data can also be packed with the stream and output to the Ethernet. The video encoding bitrates is controlled via control uart or web UI. The module is in compact size and suitable for embedded application and real time live video monitor via wireless link or Ethernet.


HD Video input Mini HDMI, HDMI type "B" Connector
Analog Video/audio input 6PIN PH1.25mm Connector
Data uart 3PIN PH1.25mm Connector, TTL 3.3V
Control uart 4PIN PH1.25mm Connector, TTL 3.3V
Power in 2PIN PH2.0mm Connector
USB Host 4PIN PH1.25mm Connector, for software upgrading
Speaker 2PIN PH1.25mm Connector
Ethernet 4PIN PH1.25mm Connector
FPC_main For connecting with Sihid radio module

Video and Audio
Video input HDMI or CVBS, auto-detected after system start-up
Optional: HDMI+AV, encoding at the same time
Video formats 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, ……
720*480 60I(NTSC), 720*576 50I(PAL)
Optional: 4K, maximum 3840*2160@30fps
Video Coding H.265/H.264, setup via control uart or Web UI;
Bitrates adjustable;
Supports proprietary H.264 video compression only used p-frames for lowest latency(the encoding and decoding latency is about 50ms to 130ms when works with Sihid SHD4 decoder module).
Audio input Embedded HDMI or analog audio
Audio Coding AAC, 16bit, stereo, 32Kbps
Encryption AES256
Ethernet stream protocol UDP TS stream, RTSP stream, UDP TS stream + RTSP stream

Monitoring and control
Setup via Web UI or control uart.

Temperature range
Full specification: 0° to +70°C Ambient(Optional: -40° to +85°C)
Storage: –40° to +85°C

Power requirements
Input range: 7~24VDC
Power consumption: <200mA@12V

Physical Characteristics
Dimensions: 70x45(not including connectors out of the board)


SUE5 overview.pdf
